Battery not included

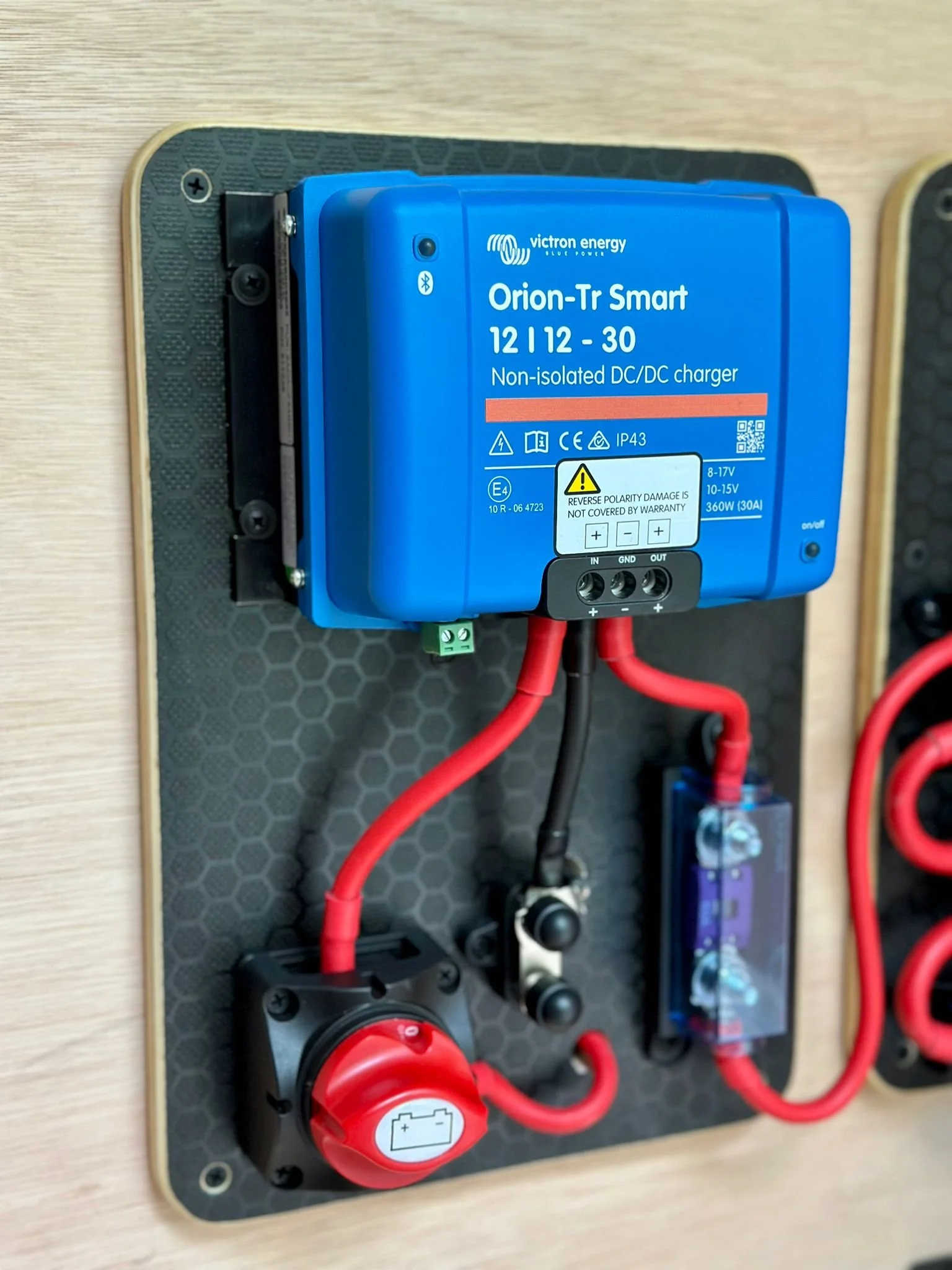

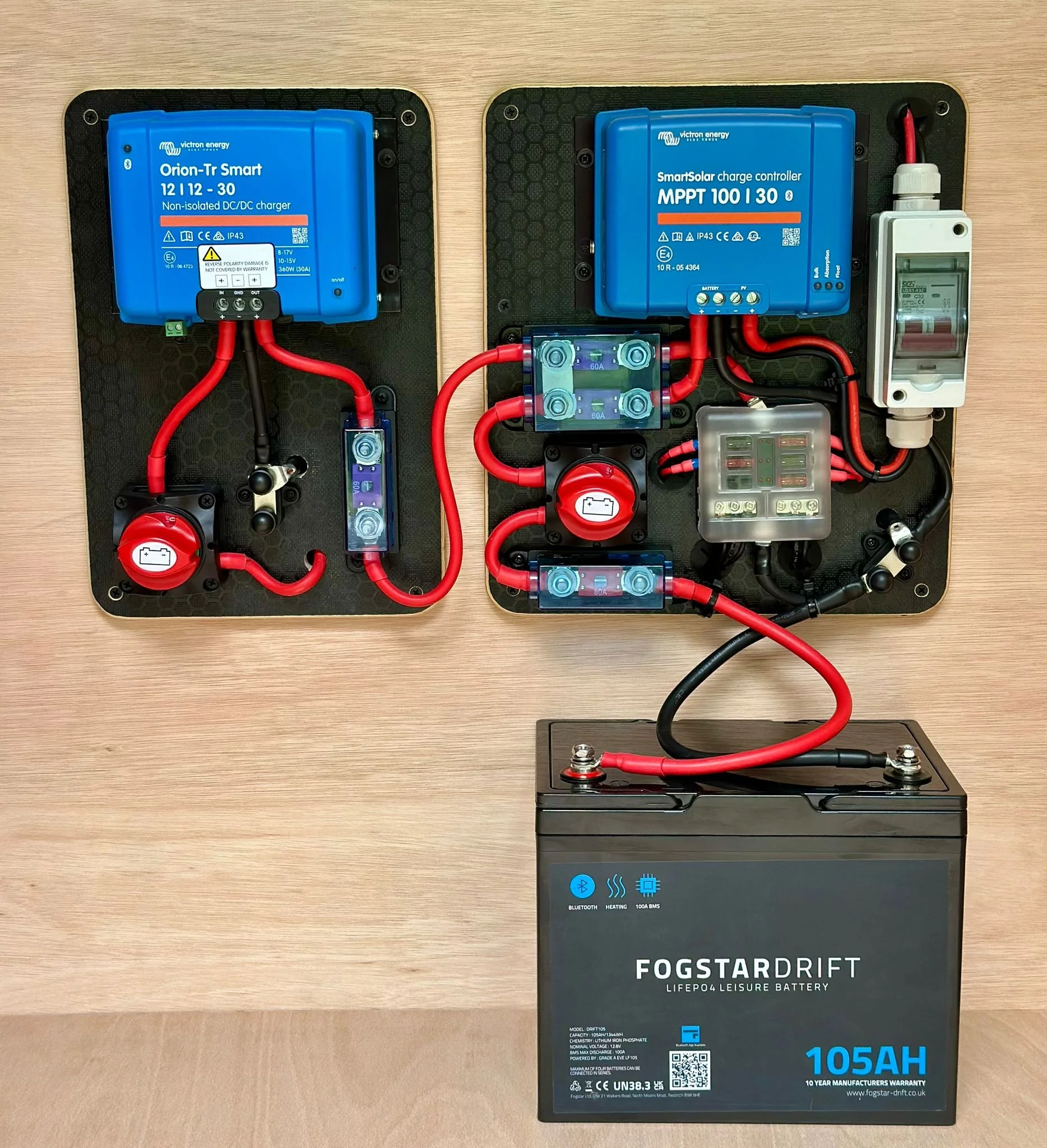

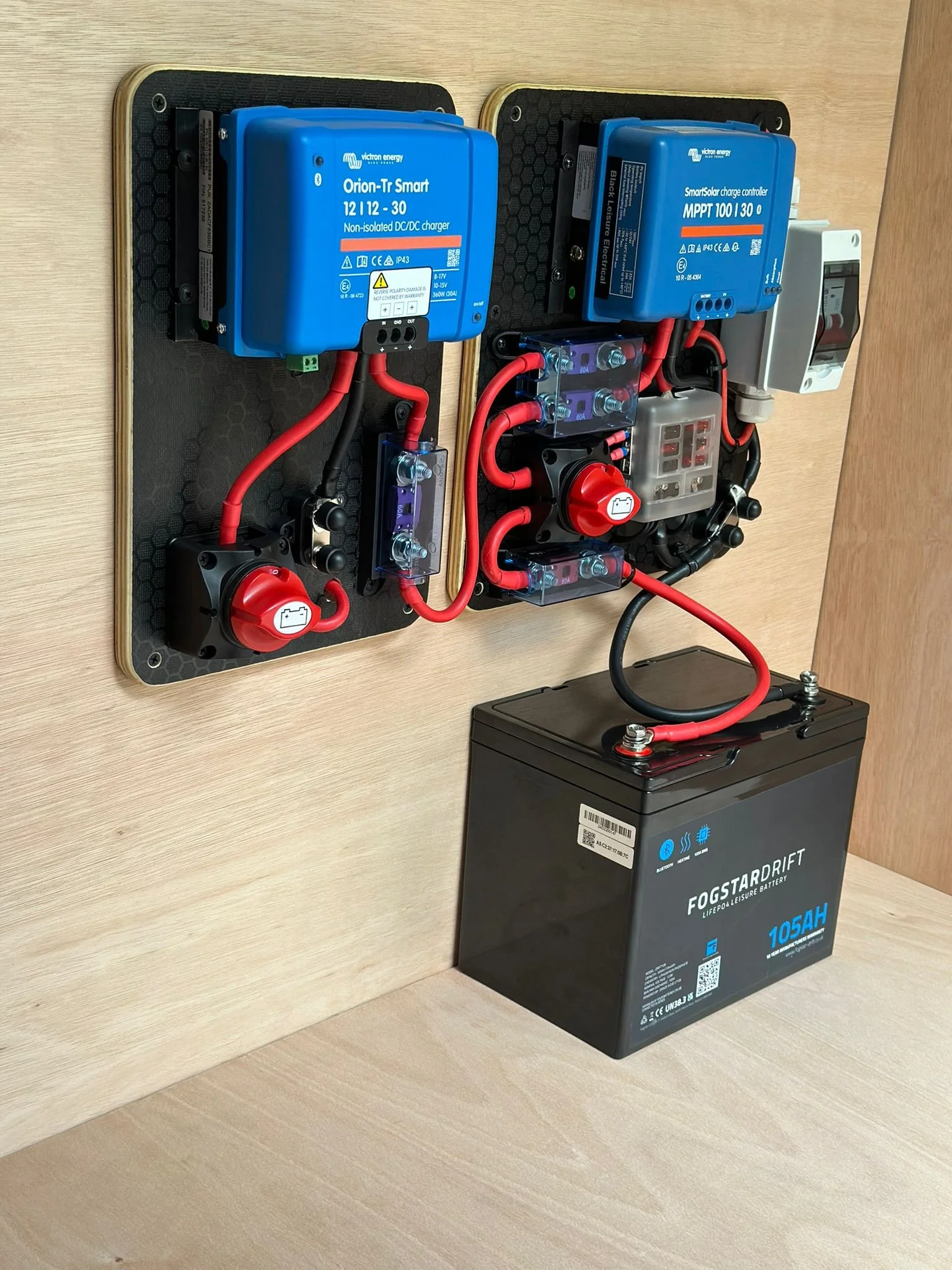

Victron 30a DC-DC charger Add-on:
Victron 12/12 30a Orion-Tr Smart DC-DC charger.
6 port fuse box for USBs, lights and other outlets.
Printed wiring diagram/instructions and rear cut-out hole template.
Bluetooth to Victron Connect App
5-year manufacturer's warranty on Victron MPPT.
60 day Workmanship and component guarantee.
Mounted on a 15mm Phenolic hexa-board.
Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float), designed to work in conjunction with the vehicles alternator to provide power to your leisure battery and its system.
Built by our professional install technician to UK BS7671 standards.
Our systems are created to make installing campervan electrics safe and simple. In your order will come included:
The unit itself.
All of the cables needed & mega-fuse holders + fuses.
Printed install instructions (also available on our website for pre-purchasing checks etc).
Rear cut-out hole template (plywood).
Installation couldn’t be simpler.
For a more detailed breakdown please visit our Wiring Diagrams & Instructions page HERE
Cables:
The unit must be within a 5m cable run from the vehicle battery (starter battery) to the mounting position.
All cables are provided and sized at 16mm and lengths are selected at checkout. It is important to note that cable lengths should be selected at the shortest possible length that’s best for you for the best possible efficiency available.
Size and measurements:
350mm height
240mm width
100mm height
Weight of unit 2.8kg
Input voltage range: 10-17 V
Under-voltage shut down: 7V
Under-voltage re-start: 7.5V
Nominal output voltage: 12.2V
Output voltage range: 10-15V
Output voltage tolerance: +/-0.2V
Continuous output current: 30A (up to 40ºC)
Maximum output current (for 10s): 40A
Short circuit output current: 60A
Continuous output power at 25ºC: 430W
Continuous output power at 40ºC: 360W
Ingress Protection rating: IP43 (screw terminals facing downwards)
Efficiency: 87%
No load input current: <80mA
Standby current: <1mA
Operating temperature range: -20 to +55ºC
Technical:
Victron Orion Tr-Smart DC-DC datasheet CLICK HERE
Input voltage range: 10-17 V
Under-voltage shut down: 7V
Under-voltage re-start: 7.5V
Nominal output voltage: 12.2V
Output voltage range: 10-15V
Output voltage tolerance: +/-0.2V
Continuous output current: 30A (up to 40ºC)
Maximum output current (for 10s): 40A
Short circuit output current: 60A
Continuous output power at 25ºC: 430W
Continuous output power at 40ºC: 360W
Efficiency: 87%
No load input current: <80mA
Standby current: <1mA
Operating temperature range: -20 to +55ºC
Fused (from starter battery) at 60a
Fused on board (DC output) 60a
Mega fuse holders- 250a
Isolation switch- 375a
Please note, we design our systems to be as simple an install as possible. Please be aware that some competency is required and have released the Install instructions for a better understanding of the install process. As with any electrical install we advise installs are carried out by a qualified professional or otherwise competent person.
If the intention is to use this unit as a standalone unit to charge a system that is already in place, then please reach out to home@blackleisureelectrical.co.uk after purchase in-order for me to provide more suitable cable.
Battery not included.
