Battery not included.
Pre-wired 12v Solar electrical system.
Need a electrical system that’s safe, compact and simple to install?
With a Victron MPPT 100/30a this system can handle up to 440w solar panels at 12v.
6 port fuse box for USBs, lights, fridges and other outlets.
Printed instructions and rear cut-out hole template.
Bluetooth to Victron Connect App
5-year manufacturer's warranty on Victron MPPT.
60 day Workmanship and component guarantee.

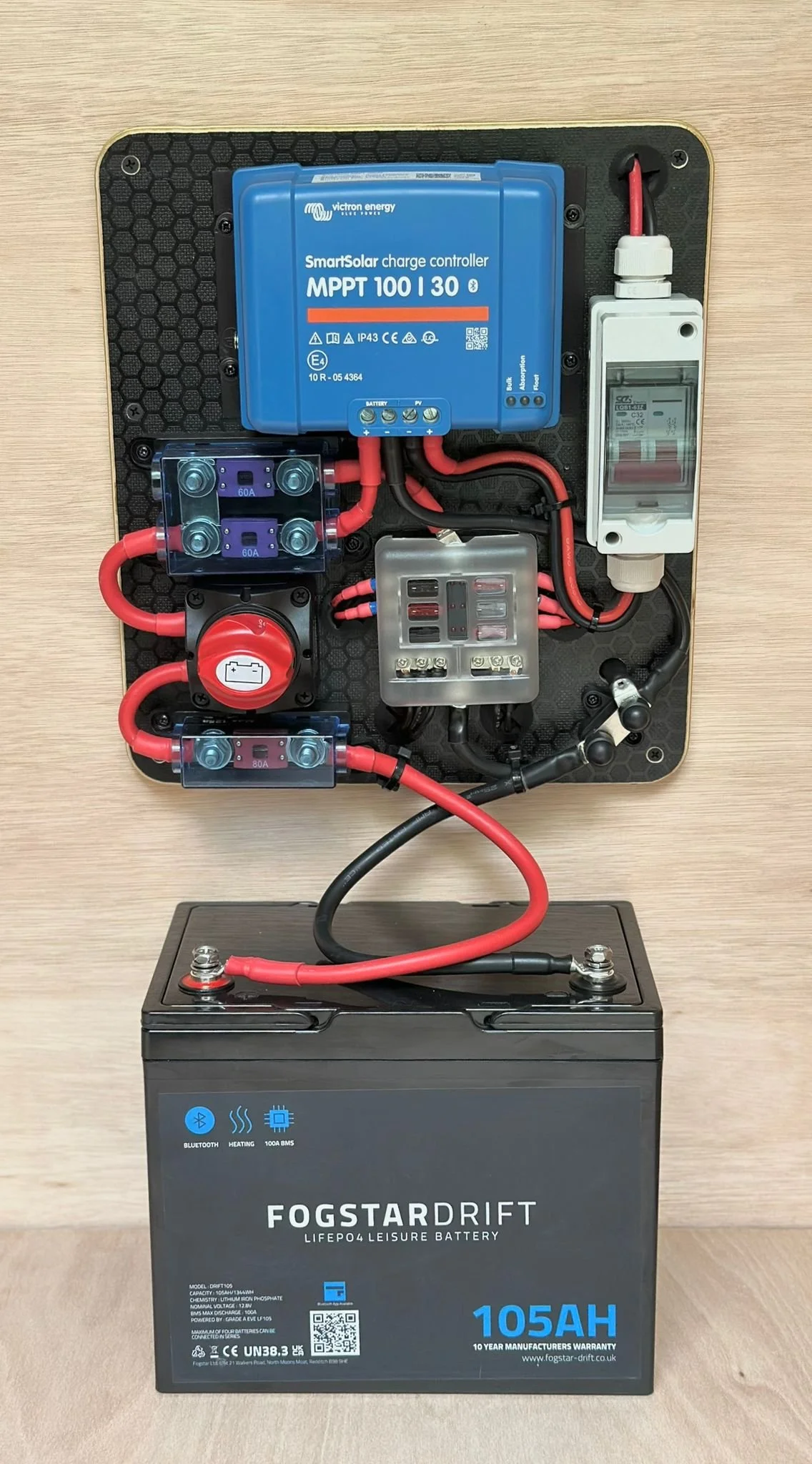

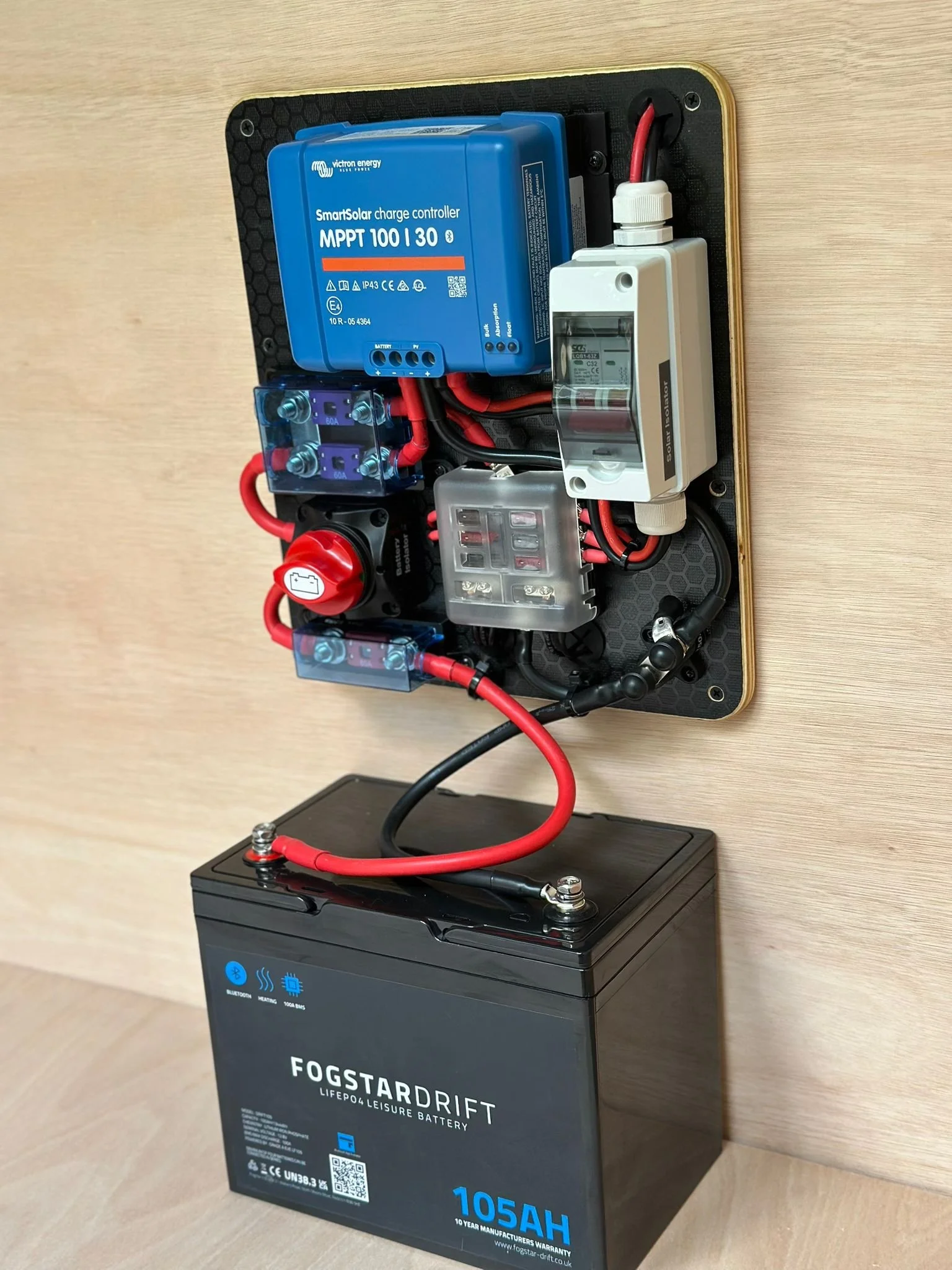

Mounted on a 15mm Phenolic hexa-board is our full 12v Pre-wired campervan system. Built by our professional install technicians to UK BS7671 standards.
Our systems are created to make installing campervan electrics safe and simple. In your order will come included:
The unit itself.
Printed install instructions (also available on our website for pre-purchasing checks etc).
Rear cut-out hole template (plywood).
A goodie bag of terminals and other such treats.
Installation couldn’t be simpler. 3 cable sets come from the board which are attached to solar panel/s, leisure battery and negative grounding point. Connect 12v outlets (USB ports, lights etc) to the fuse box and mount.
For a more detailed breakdown please visit our Wiring Diagrams & Instructions page HERE
Cables:
Battery Leads (25mm) come included with m8 terminals (length at checkout).
DC bonding/earthing (25mm) cable (length at checkout).
PV solar 15cm (ensure you have enough slack from mounting point. 50cm recommended)
Size and measurements:
Our systems are handmade so please allow for minor inconsistencies in measurements.
W38cm x L42cm x H22cm.
Choice of battery lead length (pictured 40cm).
Weight of unit 5.2kg
Victron 30a MPPT
The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
Fully automated operation and auto 12/24V selection
Max solar panel voltage: 100V
Max solar panel power: 440W (12V) / 880W (24V)
Temperature sensor for automatic compensation (-16mV / °C resp. -32mV / °C)
Comprehensive electronic protection features
Communication port: RS232 / TTL for VE Direct accessories
Self-consumption: 30mA (12V) / 20mA (24V)
Working temperature: -30°C to +60°C
IEC/EN certified
Enclosure: IP43 (electronic components) / IP22 (connection area)
Pollution Degree rating: PD3
Dimensions: 130 x 186 x 70 mm
Technical:
Victron 30a MPPT datasheet (click here)
Battery Voltage (auto-select) - 12/24v
Max pv short circuit load - 35a
Max PV open circuit voltage - 100v
Peak efficiency - 98%
Automatic load disconnect
12v Distribution box max 100a fused at 80a.
Solar PV 2P breaker 32a.Victron 30a MPPT.
Main cable- 25mm.
Mega fuse holders- 250a
Isolation switch- 375a
System main max amp- 170a
All megafuses fitted are sized at 80a.
Please note, we design our systems to be as simple an install as possible. Please be aware that some competency is required and have released the Install instructions for a better understanding of the install process. As with any electrical install we advise installs are carried out by a qualified professional or otherwise competent person.
Please select your leisure battery type at checkout as we will get these settings setup for you.
Battery not included.
